Aspirated Workbench for Histological Sample Handling
Engineered to facilitate the safe and efficient reception of disposable containers during the documentation of histological samples preserved in formalin. This workbench features an advanced vapor extraction system, seamlessly integrated into the work surface and frontal panel, ensuring optimal containment of formalin fumes. Designed for direct external fume discharge, it upholds stringent laboratory safety and environmental compliance standards.
General Specifications
- The supporting framework is constructed from high-quality AISI 304 stainless steel tubular sections, with a thickness of 1.5 mm (15/10). The cladding is made from AISI 304 stainless steel plates, 1.0 mm (10/10) thick, featuring a smooth finish and rounded edges, fully compliant with applicable industry regulations.
- The unit is equipped with adjustable, antistatic, and anti-slip feet, ensuring precise adjustment for optimal leveling and the attainment of a perfectly horizontal working surface.
- Touch Screen Controlled System with PLC integration
- General Ignition Switch: Centralized control for powering the unit.
- Emergency Stop Switch: Ensures immediate shutdown in critical situations.
- Start/Stop Switch for Aspiration: Enables precise control of the aspiration system operation.
- Aspiration Speed Regulation: Adjustable settings to optimize airflow based on operational requirements.
- Filter Saturation Alerts: Includes a red LED visual alarm and a buzzer acoustic alarm to indicate filter saturation.
- Alarm Silencing Function: Integrated key for muting acoustic alarms during operation.
- Working Parameter Adjustment: Dedicated key for seamless customization of operational settings.
- Programmable Power Control: Enables advanced scheduling for automated instrument activation and deactivation, enhancing efficiency.
- Filter Replacement Scheduling: Integrated system for precise programming of filter maintenance intervals, ensuring consistent performance.
- Dual Anti-Spark Three-Phase Electrofans: The unit is equipped with two anti-spark electrofans, modifiable via a pre-installed inverter, offering precise airflow regulation for optimal performance.
- Synthetic Fiber Prefilter: A pre-installed synthetic fiber prefilter is included to effectively capture contaminants, thereby enhancing the overall filtration efficiency.
- Alumina Formalin Filter: A pre-installed alumina filter is designed for formalin filtration, easily replaceable from the front for convenient maintenance. Upon request, an activated charcoal filter can be substituted.
- Fume Discharge Connection: The hood is fitted with a 200 mm diameter collector on the upper side, allowing seamless connection to the hospital's centralized fume extraction system for external discharge.
- Fume Extraction System: The electrofan system facilitates the extraction of fumes from both the perforated support surface and the frontal grid. The air undergoes thorough purification via the prefilter and primary filter before being safely discharged.
- Custom Built Availablity

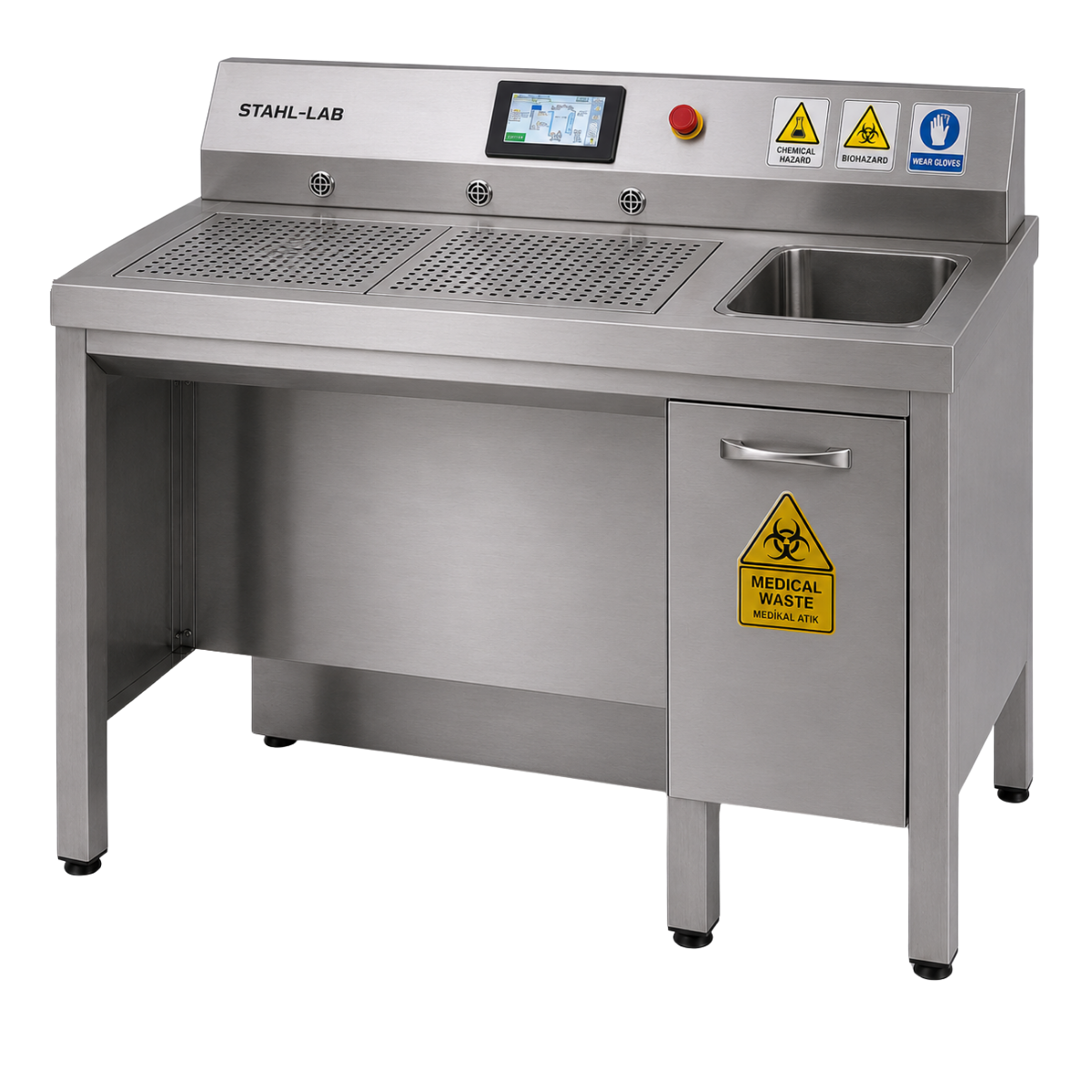

Receiving Bench
Maintaining Your Stainless Steel Worktop and Sink
To ensure your stainless steel worktop and sink remain in excellent condition for decades, please follow these essential care instructions:
-
Initial Cleaning
Before first use, thoroughly wash the surface with an alkaline detergent (pH over 8). Rinse well and dry completely.
Note: Installation may leave impurities on the surface. Removing these will allow the chromium in stainless steel to react with oxygen, forming a protective passive layer. -
Daily Maintenance
After each use, clean the surface with a soft cloth, sponge, or towel using warm water and a liquid detergent. Rinse thoroughly with water and dry with a soft cloth. -
Stain Removal Guidelines
For tough stains, including grease, discoloration from coffee or tea, salt and lime marks, and rust stains, follow these steps:- Use a cleaning paste with a pH over 8 (e.g., Cif Cream or Universal Stone) along with a soft cloth or sponge.
- Apply the detergent, allow it to sit for 15 minutes, then rinse with warm water and dry.
- For dried lime stains, a 25% vinegar solution can be effective. Let it sit briefly before cleaning, rinsing, and drying the surface.
Avoid the Following
To maintain the integrity of your stainless steel:- Refrain from using acidic substances, such as kitchen soaps containing citric acid (pH under 6), as they can damage the surface.
- Avoid scouring powders and steel wool, which may scratch the finish.
- Do not leave wet cast iron pans or other rust-prone metallic utensils on the surface for extended periods, as they may leave marks.
By following these guidelines, you can ensure the longevity and appearance of your stainless steel worktop and sink.
-
